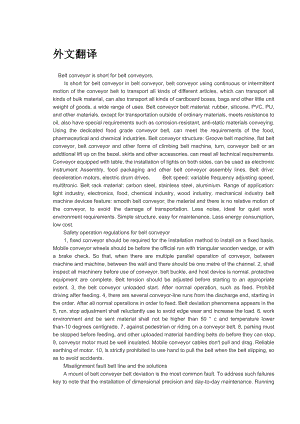

1、外文翻译Belt conveyor is short for belt conveyors.Is short for belt conveyor in belt conveyor, belt conveyor using continuous or intermittent motion of the conveyor belt to transport all kinds of different articles, which can transport all kinds of bulk material, can also transport all kinds of cardboar
2、d boxes, bags and other little unit weight of goods, a wide range of uses. Belt conveyor belt material: rubber, silicone, PVC, PU, and other materials, except for transportation outside of ordinary materials, meets resistance to oil, also have special requirements such as corrosion-resistant, anti-s
3、tatic materials conveying. Using the dedicated food grade conveyor belt, can meet the requirements of the food, pharmaceutical and chemical industries. Belt conveyor structure: Groove belt machine, flat belt conveyor, belt conveyor and other forms of climbing belt machine, turn, conveyor belt or an
4、additional lift up on the bezel, skirts and other accessories, can meet all technical requirements. Conveyor equipped with table, the installation of lights on both sides, can be used as electronic instrument Assembly, food packaging and other belt conveyor assembly lines. Belt drive: deceleration m
5、otors, electric drum drives. Belt speed: variable frequency adjusting speed, multitronic. Belt rack material: carbon steel, stainless steel, aluminium. Range of application: light industry, electronics, food, chemical industry, wood industry, mechanical industry belt machine devices feature: smooth
6、belt conveyor, the material and there is no relative motion of the conveyor, to avoid the damage of transportation. Less noise, ideal for quiet work environment requirements. Simple structure, easy for maintenance. Less energy consumption, low cost.Safety operation regulations for belt conveyor1, fi
7、xed conveyor should be required for the installation method to install on a fixed basis. Mobile conveyor wheels should be before the official run with triangular wooden wedge, or with a brake check. So that, when there are multiple parallel operation of conveyor, between machine and machine, between
8、 the wall and there should be one metre of the channel. 2, shall inspect all machinery before use of conveyor, belt buckle, and host device is normal, protective equipment are complete. Belt tension should be adjusted before starting to an appropriate extent. 3, the belt conveyor unloaded start. Aft
9、er normal operation, such as feed. Prohibit driving after feeding. 4, there are several conveyor-line runs from the discharge end, starting in the order. After all normal operations in order to feed. Belt deviation phenomena appears in the 5, run, stop adjustment shall reluctantly use to avoid edge
10、wear and increase the load. 6, work environment and be sent material shall not be higher than 50 c and temperature lower than-10 degrees centigrade. 7, against pedestrian or riding on a conveyor belt. 8, parking must be stopped before feeding, and other uploaded material handling belts do before the
11、y can stop. 9, conveyor motor must be well insulated. Mobile conveyor cables dont pull and drag. Reliable earthing of motor. 10, is strictly prohibited to use hand to pull the belt when the belt slipping, so as to avoid accidents.Misalignment fault belt line and the solutionsA mount of belt conveyer
12、 belt deviation is the most common fault. To address such failures key to note that the installation of dimensional precision and day-to-day maintenance. Running a number of reasons, be addressed according to different reasons for difference between: 1, adjusting the carrying idler group. 2, the ins
13、tallation of self-aligning idler group. 3, adjust the position and bend pulley driven drum. 4, tensioning adjustment. 5, bi-directional adjustment of belt conveyor belt running deviation than one-way adjustment of belt line deviation relative to many difficulties, specific adjustment should be adjus
14、ted in a certain direction, and then adjust the other direction.Routine maintenance of belt conveyor1, check all fasteners and verify that there are no loose. 2, cleaning the belt and make sure that the belt intact, damage should be replaced in a timely manner if a belt is found. 3, check the motor
15、lubricating oil in the gear box and ensure that normal. 4, check of belt tension and adjust to the right.Domestic status of belt conveyorManufacturing in China more varieties, types of belt conveyors. 85 period, through the national one-stop Nissan tons fully mechanized coal mining equipment project
16、 implementation of belt conveyor technical level has been greatly improved, with high power, long distance belt conveyor of coal mine machine key technology research and new production of Dr LUI has made great progress in development. As large angle long distance with type conveying machine equipment, and high yield efficient face Shun slot can telescopic with type conveying machine, are filled has domestic blank, and on with type conveying machi
