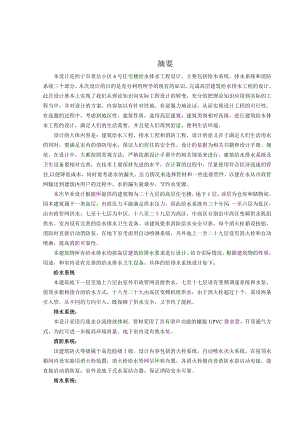

1、 摘要本设计是西宁市景岳小区4号住宅楼给水排水工程设计，主要包括给水系统、排水系统和消防系统三个部分。本次设计的目的是充分利用所学的现有的知识，完成高层建筑给水排水工程的设计。此次设计基本上实现了我们从理论知识向实际工程设计的转变，充分的把理论知识应用到实际的工程当中，并对设计的方案、内容加以有针对性地、有说服力地论证，从而实现设计工程的可行性。在选题的过程中，考虑到地区性、建筑性质，选用高层建筑，建筑类别相对高级，进行建筑给水排水工程的设计，满足人们的生活需要，并且使人们得到舒适、便利生活环境。设计的大体内容是：建筑给水工程、排水工程和消防工程，设计的意义在于满足人们生活用水的同时，要满足室
2、内的消防用水，保证人们居住的安全性。设计的依据为相关书籍和设计手册、规范。在设计中，大都按照常规方法，严格依据设计手册中的相关规范来进行，建筑给水排水系统及卫生设备要相对完善，在技术上要保持先进的水平，在计算的过程中，尽量使用符合经济流速的管径,以便降低成本，同时要考虑水的漏失、压力情况来选择管材和一些连接管件，以便在水从市政管网输送到建筑内用户的过程中，水的漏失量最少，节约水资源。本次毕业设计根据所提供的建筑物为二十九层的高层住宅楼，地下1层，该层为仓库和储物间。因本建筑属于一类高层，市政压力不能满足供水压力，因此给水系统有三个分区：一至六层为低区，由市政管网供水；七至十七层为中区，十八至二
3、十九层为高区，中高区分别由中高区变频供水机组供水。室内设有完善的给水排水卫生设备。该建筑要求消防给水安全可靠，每个消火栓箱设按钮，消防时直接启动消防泵，在地下室考虑用自动喷淋系统，另外地上一至二十九层设有消火栓和自动喷淋，提高消防可靠性。本建筑物所有给水排水均按高层建筑给排水要求进行设计。结合实际情况，根据建筑物的性质，用途，和室内设有完善的给水排水卫生设备，具体的给排水系统设计如下：给水系统本建筑地下一层至地上六层由室外市政管网直接供水，七至十七层设有变频调速系统和水泵、屋顶水箱相接合的给水方式，十八至二十九由高区变频机组供水；由于消火栓超过十个，需设两条引入管。从不同的方向引入。既保障了供
4、水安全，又节约了能耗。排水系统：本设计采用污废水合流排放体制。管材采用了具有消声功能的螺旋UPVC排水管，升顶通气方式，为此可进一步提高环境质量。地下室内设有集水坑。消防系统：该建筑防火等级属于高危险级级，设计内容包括消火栓系统，自动喷水灭火系统。在屋顶水箱间内设实验用消火栓装置，消火栓给水管网呈环状布置，各消火栓箱内设消防水泵启动电钮，能直接启动消防泵；室外设地下式水泵结合器，保证消防安全可靠。雨水系统：该建筑为高层住宅楼，对建筑立面要求较高，建筑的屋面高低落差较大故主要采用雨水内排水方式。各系统中的立管设在管井内或沿墙敷设，水平管根据各系统的特点明敷或暗敷。本设计以经济、环保、节能为原则，
5、通过借鉴以前的设计方法和经验，采用了合理的技术措施，使设计的各个系统达到了很好的使用效果。 AbstractThis design is the drainage project in Xining City Jingyue District 4 residential building water system design, mainly includes three parts of water supply system, drainage system and fire control system. The purpose of this design is to make ful
6、l use of the existing knowledge, to complete the design of water supply and drainage engineering of high-rise building. This design basically realized the transformation from theoretical knowledge to practical engineering design, the full application of theoretical knowledge to practical projects, a
7、nd the design scheme, content to be targeted, persuasive arguments, so as to realize the feasibility of the design project. In the selection process, taking into account the regional nature, architecture, selection of high-rise buildings, building category is relatively advanced, design of building
8、water supply and drainage engineering, satisfy the need of peoples lives, and make people get comfortable, convenient living environment.The main content is: Design of building water supply projects, drainage and fire protection engineering, the significance lies in the design to meet the peoples li
9、ving water at the same time, to meet the indoor fire water, guarantee the security of people living. Design basis for the relevant books and design manuals, specifications. In the design, mostly in accordance with the conventional method, strictly according to the related standards in design manual
10、for building water supply and drainage system, and health equipment should be relatively perfect, in order to maintain the advanced level in technology, in the process of calculating, use as far as possible consistent with the economic flow diameter, in order to reduce the cost, at the same time to
11、leakage, pressure the water pipe and connecting pipe to choose, so that from the municipal pipeline to building within the users in the water, the water leakage at least, conservation of water resources.High-rise residential building this graduation design according to the building is twenty-nine la
12、yer, underground 1 layer, the layer of warehouse and storage. Because of this building belongs to a class of high-rise, municipal pressure can not meet the water supply pressure, so the water supply system with three divisions: one to six layers as low area, by the municipal water supply pipe networ
13、k; seven to seventeen layers for central, eighteen to twenty-nine layers for high, high region respectively by the high frequency of water supply units in water. A water supply and drainage equipment to improve indoor health. Fire water supply safety and reliability requirements of the building, eac
14、h hydrant box set button, fire directly start the fire pump, in the basement, consider the use of automatic sprinkler system, in addition to one or twenty-nine layer is provided with a fire hydrant and sprinkler, fire reliability improvement.All the building water supply and drainage according to th
15、e requirements of high-rise building drainage design. Combined with the actual situation, according to the buildings properties, uses, and the chamber is provided with a water supply and drainage sanitary equipment, the water supply and drainage system design is as follows:Water supply system The bu
16、ilding underground layer to the ground six layers from outside the municipal water supply pipe network directly, water supply seven to seventeen layer with variable frequency speed regulation system, the roof water tank and pump combination, eighteen to twenty-nine by high frequency unit water supply; because the fire hydrant surpasses ten, must suppose two lead-i
